RoHS WDM Mux And Demux High Isolation 4 Channel Multiplexer

Name: RoHS WDM Mux And Demux High Isolation 4 Channel Multiplexer
Brand: Wuhan ETERN Optoelectronics
Price: 1 USD

Quality RoHS WDM Mux And Demux High Isolation 4 Channel Multiplexer wholesale

Brand Name : Wuhan ETERN Optoelectronics

Model Number : CWDM Module MULTIPLEXER / DEMULTIPLEXER

Certification : RoHS

Place of Origin : China

MOQ : 2PCS

Price : Negotiable

Payment Terms : T/T

Supply Ability : 150k channel per month

Packaging Details : Carton

Passband : Flat and Wide Passband

Operation Perfomance : Low Insertion Loss, High Isolation

Channel No. : 4 channel

Channel Spacing : 100G

Color : White

Application : Telecommunications, Enterprise network, Campus network

Contact Now

CWDM Module MULTIPLEXER / DEMULTIPLEXER

ETERN ‘s CWDM are based on thin film filter technology and core of packaged. Packaging options include fiber type and integration of aps and detectors for a complete Coarse Wavelength Division Multiplexing solution.

Feature:

1. Flat and Wide Passband

2. High Stability and Reliability

3. Low Insertion Loss, High Isolation

Applications:

1. WDM Transmission

2. Metro and Access Network

Performance Specification:

	Parameter		Units	Value
	Channels			2/4/8/16
	Central Wavelength			ITU-T Grid
	Pass band@-0.5dB		nm	≥14
	Pass band Flatness		dB	≤0.5
		Typ.		1.4/1.6/2.6/3.8
Insertion Loss1			dB
		Max.		1.7/2.0/3.2/4.5
	Polarization Dependent Loss (PDL)		dB	≤0.1/≤0.15/≤0.22/≤0.25
	Adjacent Channel Isolation		dB	≥30
	Non-Adjacent Channel Isolation		dB	≥45
	Return Loss		dB	≥45
	Polarization Mode Dispersion(PMD)		ps	≤0.1/≤0.1/≤0.15/≤0.15
	Directivity		dB	≥50
	Operating Temperature		℃	-5 to +65
	Storage Temperature		℃	-40 to +85

Ordering Information:

CWDM	-	□□	-	□□	-	□	□□	□	-	□	□
CWDM Ch Number				Started Ch		Fiber Type	Fiber Length	Connector		Application	Package
2=2ch				XX=1XX1		1=250um SM	00=Adapter	1=None		M=Mux	M=Module
4=4ch				27=1271		2=900um SM	05=0.5m	2=FC/UPC		D=Demux	L=LGX
8=8ch				33=1331		3=2.0mm SM	10=1.0m	3=FC/APC		MD=Mux & Demux	R=Rack
16=16ch				......		4=3.0mm SM	15=1.5m	4=LC/UPC
......							20=2.0m	5=LC/APC
							......	6=SC/UPC
								7=SC/APC
								X=Special

Product Tags:

White wdm mux and demux

RoHS wdm mux and demux

High Isolation 4 channel multiplexer

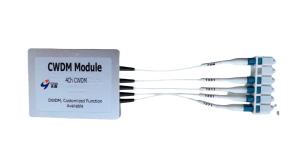

RoHS WDM Mux And Demux High Isolation 4 Channel Multiplexer Images
